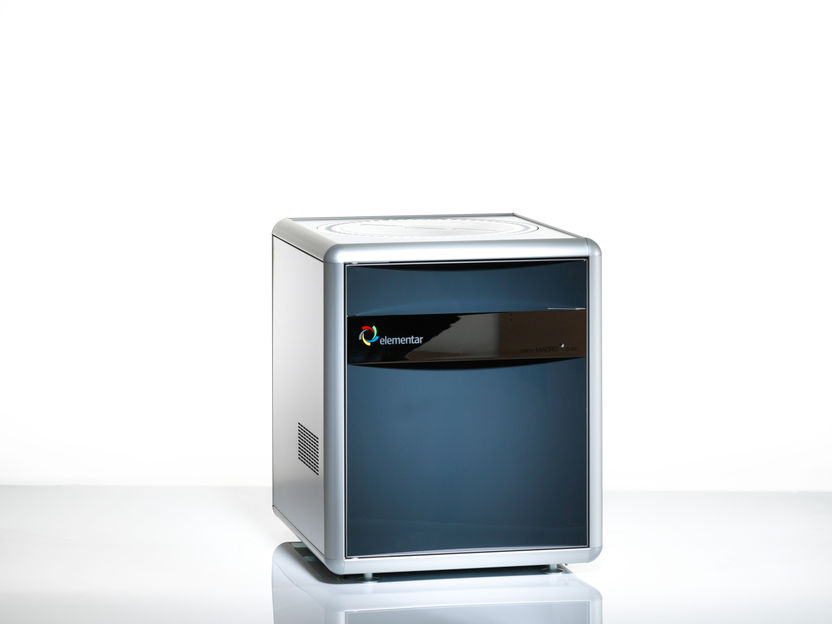

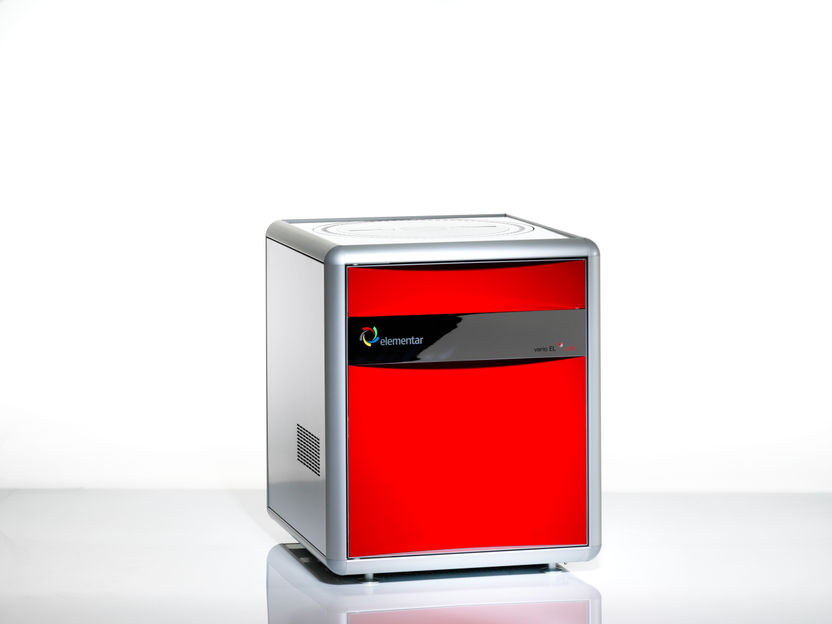

UNICUBE / vario EL cube / vario MAX cube
Combustion Analysis Has Never Been Easier
Elementar Analysensysteme GmbH
CHNS determination from micro to macro with elemental analyzers for organic elemental analysis
Carbon, hydrogen, nitrogen, oxygen, and sulfur are the basic elements of living nature. Their quantitative determination in the most versatile combinations of substances, the elemental analysis, is the origin and essence of our product portfolio.
Our analyzers for organic elemental analysis cover all kinds of different applications and can reliably measure even the most challenging C:N elemental ratios of up to 12,000:1 thanks to our proprietary Advanced Purge and Trap (APT) technology. All analyzers are designed to simplify daily routine operation and to reduce maintenance to a minimum. Optional conversion kits make it possible to upgrade every instrument at any time for special applications.
Elementar analyzers from Elementar offer the following advantages:
- Elemental analyzers in the operating modes CHNS, CHN, CNS and CN for the simultaneous, fully automatic measurement of all elements with highest precision and accuracy
- Option for the determination of oxygen and/or chlorine
- Largest dynamic range for concentration ratios from < 0.01 to 100 % even with strongly changing element composition
- Flexible weighing range from < 1 mg to several grams without time-consuming sample preparation
- Optional operation with helium or argon as carrier gas
- Stable, matrix-independent multi-point calibration
- User-friendly design, e.g. sample loading during operation and tool-free routine maintenance
- Low investment and analysis costs
- Resource-saving sleep mode
- 10 years warranty on the furnace and the thermal conductivity detector cell
Elemental analyzers from Elementar are the ideal solution for:
- Chemical contract laboratories
- Pharmaceutical laboratories
- Laboratories for quality control
- Academic Research Groups
- Fertilizer producers
- Refineries
- Coal Industry
and are suitable for a variety of sample types, such as
- Chemicals
- Pharmaceuticals
- Polymers
- Petrochemical products
- Soil samples
- Fertilizer
- Biomass
- Waste
- Coal
- Oil & Gas
Specifications
1
vario EL cube: the high-end solution for all applications. The established Advanced Purge and Trap (APT) technology guarantees baseline separation under all circumstances for all kinds of samples.
2

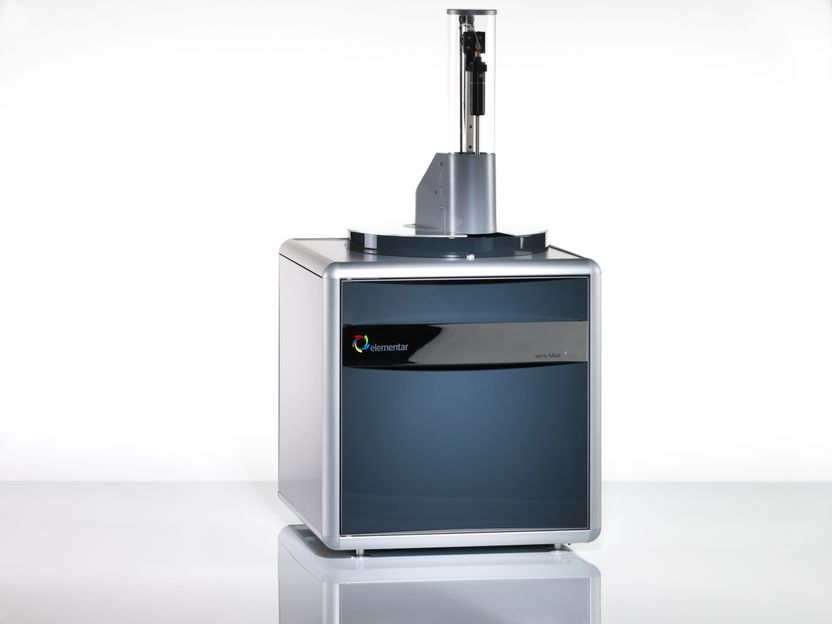

vario MACRO cube: The art of elemental analysis. Whether in coal, coke, or biomass analysis – the simultaneous determination of CHNS of samples up to the gram range is carried out in one fully automatic step.
3
vario MAX cube: MAXimum performance on a micro foot print. Sample weights up to 5 g spare homogenization and therefore minimize sample preparation.
4

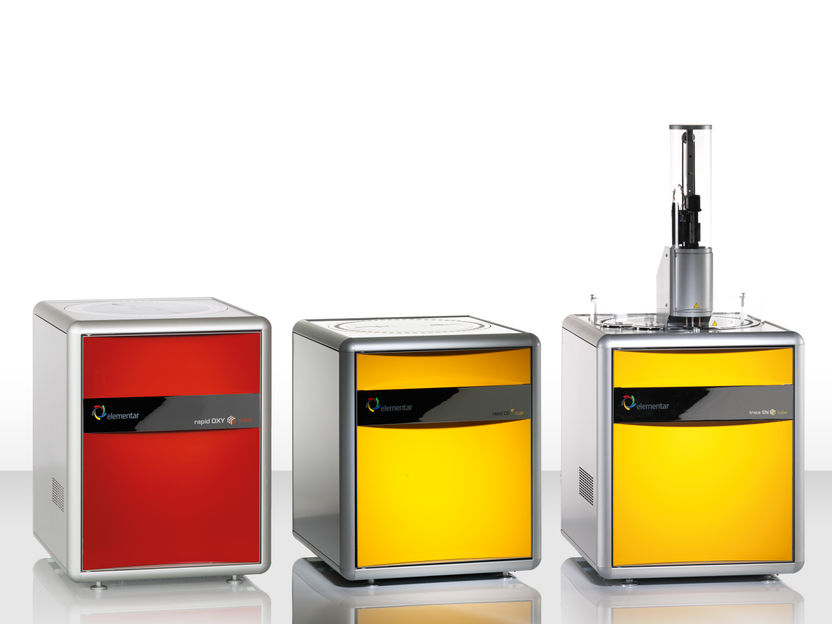

We offer tailor-made solutions for special applications, e.g. analyzers for oxygen analysis (rapid OXY cube®), for carbon and sulfur analysis (rapid CS cube), as well as for the determination of sulfur and nitrogen in the ppb range (trace SN cube).
5
UNICUBE® for the determination of CHNS + O + Cl combines the low costs and the sensitivity of a micro elemental
Product classification UNICUBE / vario EL cube / vario MAX cube
Applications
Request information about UNICUBE / vario EL cube / vario MAX cube now
CHNS analyzers: UNICUBE / vario EL cube / vario MAX cube
Combustion Analysis Has Never Been Easier
